Kaydon slewing bearings

HT series

Kaydon HT series slewing ring bearings are larger versions of the HS series, with increased ball diameter and cross-sectional area providing substantially more capacity. HT series slewing bearings provide a wide variety of solutions for a variety of medium- to heavy-duty applications.


Design features
The internal configuration consists of deep groove gothic arch raceways and maximum ball complement. This results in a four-point contact design that provides exceptional moment, thrust, and radial load capacities. Integral seals are provided to assist in the exclusion of contaminants.

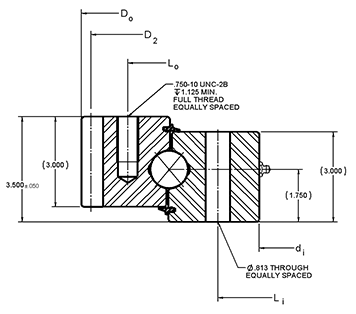

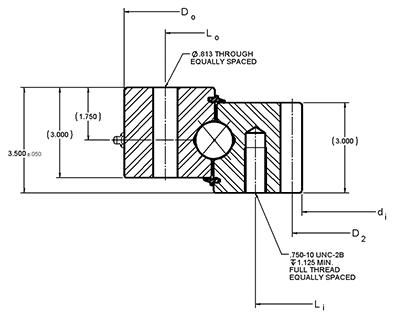

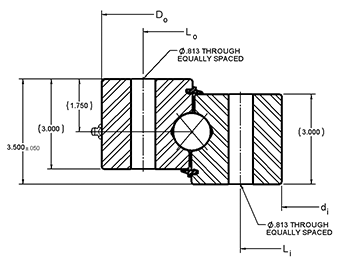

Geared rings have tapped holes, while non-geared rings have through holes. HT series bearings are available in internal geared, external geared, and nongeared configurations. The gears are involute stub designs with 20° pressure angles, manufactured to AGMA Class Q5 and 0.015 to 0.025 inches allowance for backlash. They range in size from 36‐66 inches OD (900‐1700 mm OD) with a standard cross section.

Availability
HT series slewing ring bearings are made to order and can require a longer lead time as forgings are not stocked.

Applications
HT series bearings have been used successfully in a variety of medium- to heavy-duty applications including:

• Cranes
• Aerial lifts
• Digger derricks
• Chute swivels
• Lift truck rotators
• Industrial turntables

Click on the Kaydon part number to view and download 3D models and CAD files. You must login or register before accessing drawings.

Notes
Damage to equipment and danger to human life can result from failure to heed the recommendations in the text identified by the warning symbol in Kaydon Catalog 390 where further details and additional considerations can be found.
