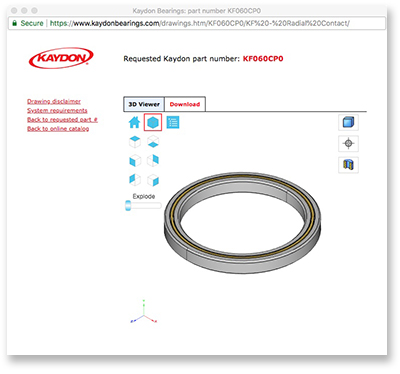

Kaydon thin section bearing CAD models2D and 3D models of Kaydon thin section bearings are available to download in a variety of CAD software formats. Login or register to access drawings, product catalogs, and Reali-Design® software. To search Kaydon's thin section bearing catalog by bore size, outside diameter, width, and part number, use the thin section bearing selector.
Kaydon's complete line of standard thin section bearings is listed below. Choose the appropriate bearing series by cross section dimension and type (angular, radial, four point). Select a part number from the resulting list to download the desired drawing. |
|
||||||||||||||||||||||||||||||
|
Kaydon Reali-Slim® open bearings
The Kaydon Reali-Slim® bearings series is based on a single cross section which remains constant as the bore diameter is increased (in sharp contrast to standard bearings, in which the cross section increases as the bore diameter increases). By using the same series of Reali-Slim® bearings throughout a product line, the designer can standardize on common components. |
||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
|
Kaydon Reali-Slim® sealed bearings
Kaydon Reali-Slim® sealed bearings offer integral sealed and integral shielded bearings, providing a very compact overall design with the additional advantage of protecting the bearing before, during and after installation. |
||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
|
Kaydon Endurakote®-plated bearings
Kaydon's proprietary Endurakote® hard chromium plating protects bearings from corrosion and provides substantial life improvements in hostile environments, achieving the corrosion resistance normally found only in stainless steel bearings, but at a lower cost. This is particularly beneficial for large diameter bearings or where quick delivery is critical. |
||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
|
Kaydon Reali-Slim® stainless steel bearings
Kaydon stainless steel bearings are used where high precision and corrosion resistance are required. AISI 440C stainless steel Reali-Slim® thin section bearings minimize the surface degradation and particulate formation so common to harsh environment applications. |
||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
|
Kaydon Reali-Slim MM® metric bearings
Kaydon Reali-Slim MM® series products provide compact, lightweight designs for applications requiring metric envelope dimensions or dimensional interchangeability with other products. |
||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
|
Kaydon Ultra-Slim® bearings
Kaydon Ultra-Slim® extra thin bearings offer many possibilities where precise positioning and lightweight designs are critical. Precision-engineered Ultra-Slim® bearings are made of stainless steel for corrosion resistance. These low profile, precision ball bearings are ideal for robotics, inspection equipment, satellites, cameras and similar light and medium duty applications with slow or intermittent rotation. |
||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
|
Kaydon Reali-Slim TT® turntable bearings
Kaydon Reali-Slim TT® series are the first small-scale, thin section turntable bearings available for such demanding applications as robotics, radar antennae, and factory positioning and inspection tables. Kaydon turntable bearings save weight, reduce product design envelope sizes and increase design flexibility. |
